Product Overview

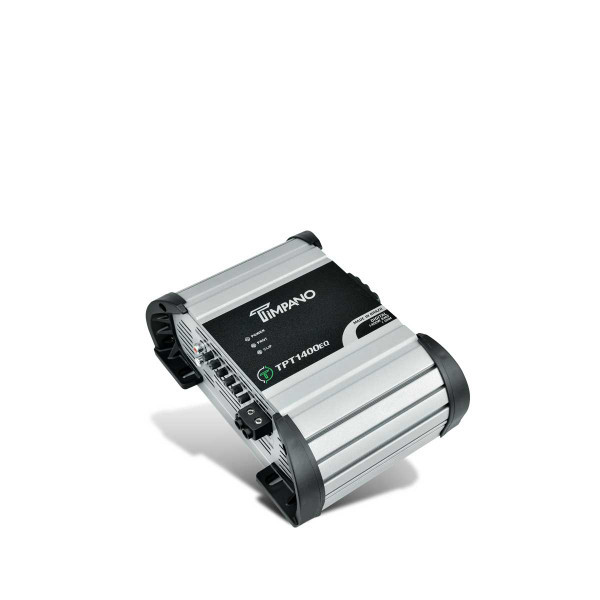

About Timpano TPT-1400EQ Monoblock Compact Car Audio Amplifier
Timpano amplifiers raise power amplification to a new standard of quality and usability. This new line delivers the most innovative and powerful Brazilian technology in compact full range amplifiers. Loaded with features, it provides an unsurpassed efficiency rate of 80-90% from a small profile heatsink.
Compact Design
Digital class D Brazilian technology allows this amplifier to have a small footprint by integrating a high-speed mosfet power supply with top of line transistors to ensure performance in a small heat sink without compromising performance. Dimensions: 8.75″ depth x 6.20″ width x 3″ height
Power
This amplifier is designed to run multiple speakers with the power they need to perform! Systems that demand 1400 Watts dynamic RMS power output at 1 Ohm on 1 channel. Its high efficiency rate of 81% provides more power with less battery consumption.
Technology
A smart electronic 4-way protection circuit protects the amp if it gets too hot, if speakers fail causing a short and as well low/high voltage protections! Focusing on sound quality, a response of 10 to 25,000Hz was used to give the best sound reproduction from this tiny amp. This makes it a popular option for systems with many drivers or tweeters.
Technical Information
| TPT-1400EQ 1 Ohm | TPT-1400EQ 2 Ohm | |
| Number of Channels | 01 | 01 |
| Max Dynamic Output | 1400 Watts RMS 1 Ohm | 1400 Watts RMS 2 Ohms |
| RMS Power @ 12.6 Volts | @ 12.6 VDC - 1 OHM: 1200W | @ 12.6 VDC - 2 OHM: 1200W @ 12.6 VDC - 4 OHMS: 700W |
| RMS Power @ 14.4 Volts | @ 14.4 VDC - 1 OHM: 1400W @ 14.4 VDC - 2 OHMS: 850W | @ 14.4 VDC - 2 OHM: 1400W @ 14.4 VDC - 4 OHMS: 800W |
| Supply Voltage | 11 ~ 16V | 11 ~ 16V |
| Frequency Response | 10Hz ~ 25KHz | 10Hz ~ 25KHz |
| Crossover Low Pass (LPF) | 50Hz ~ 25KHZ | 50Hz ~ 25KHz |
| Crossover High Pass (HPF) | 10Hz ~700Hz | 10Hz ~ 700Hz |
| Signal to Noise Ratio | >90dB | >90dB |
| Harmonic Distortion | <0.9% THD | < 0.9 % THD |
| Input Sensitivity | 0.2 V | 0.2V |
| Input Impedance | 12K Ohms | 12K Ohms |
| Impedance Output | 1 Ohm | 2 Ohms |
| Consumption with Signal Musical | 1A ~ 57A | 1A ~ 56A |
| Dimensions (D x W x H) | 8.75" x 6.20" 3" | 8.75" x 6.20" 3" |
| Weight | 4.40LBS | 4.50LBS |
Precautions:
You must follow the instructions for the product’s installation and connections to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:
- Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to equipment.
- Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference;
- Always use 100% Copper wire and good quality connectors. This guarantees reliability and performance.
- To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: For this amp use a 60A fuse 12 inches away from the battery as a safety precaution
